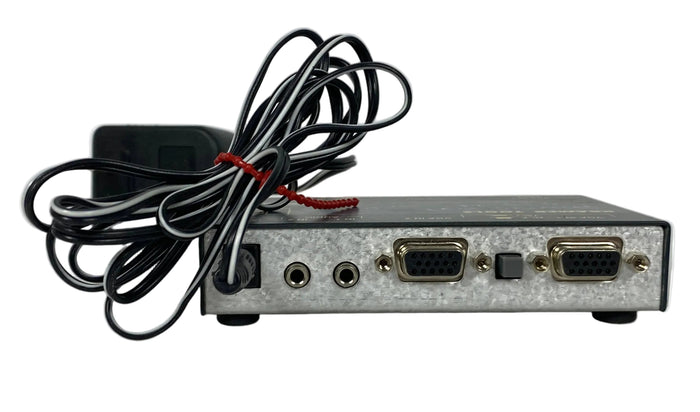

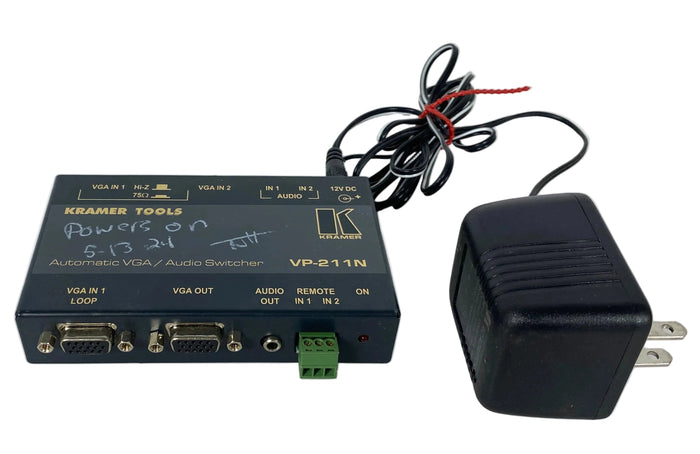

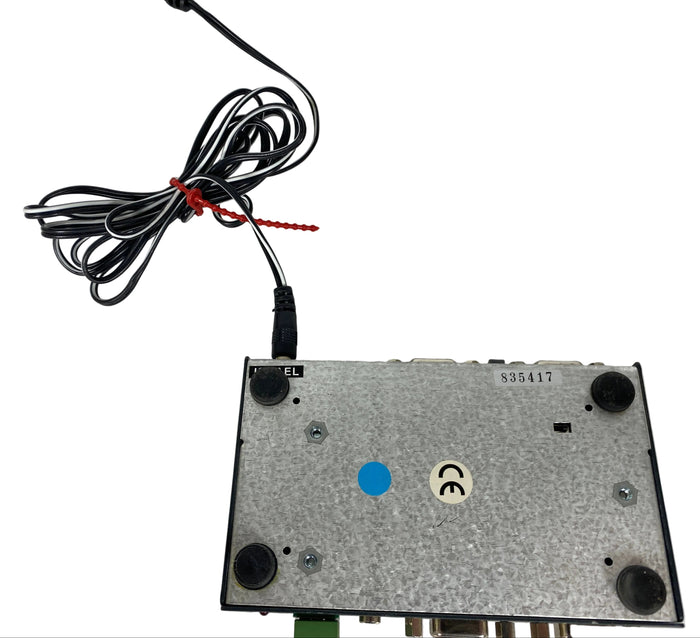

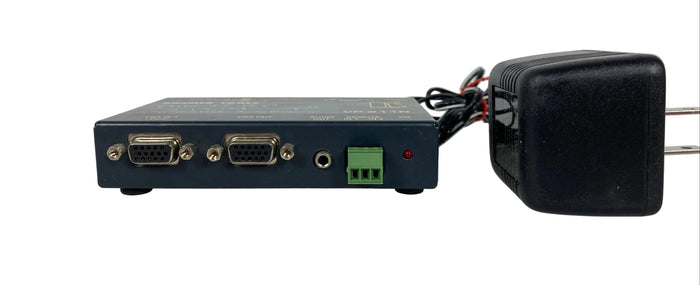

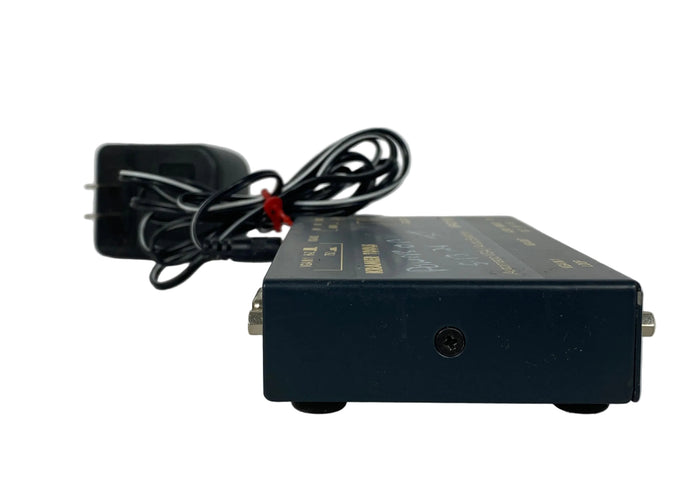

Kramer Tools VP-211N Automatic VGA / Audio Switcher *Untested*

Item Details:

• Brand: Kramer Tools
• Model: VP-211N

• Type: Automatic VGA / Audio Switcher

• Specifications:

  • Inputs:
    • 2 analog red, green, blue signals - 0.7 Vpp / 75 ohms, H & V sync, TTL level, on HD15F Connectors
    • 2 unbalanced stereo audio +4dBm nom. on 3.5mm mini plugs
    • Loop: 1 analog red, green, blue signals - 0.7 Vpp / 75 ohms, H & V sync, TTL Level on HD15F connector

    • Remote: 3 PIN terminal block connector for external switch connection via 3 wires
  • Outputs:
    • 1 analog red, green, blue signals - 0.7 Vpp / 75 ohms, H & V sync, TTL Level on HD15F connector

    • 1 unbalanced stereo audio +3dBm nom/ 0n a 3.5mm mini plug
  • Switching Method: Analog Switching

  • Sync Detector: Vertical Sync - TTL Level

  • Bandwidth:
    • Video: 400 MHz -3 dB

    • Audio: > 100 kHz - 3dB

  • Maximum level:
    • Video: 1.5 Vpp

    • Audio: 5V

  • SNR

    • Video: 70.6dB
    • Audio: 89.2
  • Coupling:

    • Video: 70.6dB

    • Audio: 5V

  • Differential Gain: 0.004%

  • Differential Phase: 0.03 Deg

  • Video K-Factor: <0.05%
  • Video Tilt: <0.05%

  • Audio Impedance:
    • Input: Hi-Z

    • Output: 400 ohms
  • THD + Noise Audio: 0.019%
  • Audio 2nd Harmonic: 0.003%

Condition

• Item is used and in good condition
• Item may have minor scratching and scuffing from normal use
• Item has powered on but has not been tested further

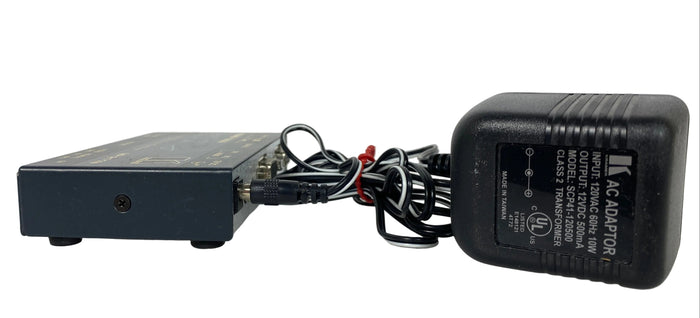

• Item includes power supply
• Item includes no additional accessories
