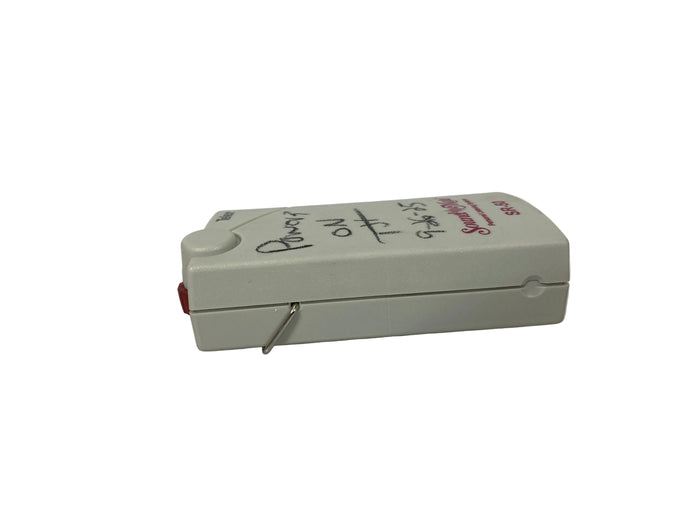

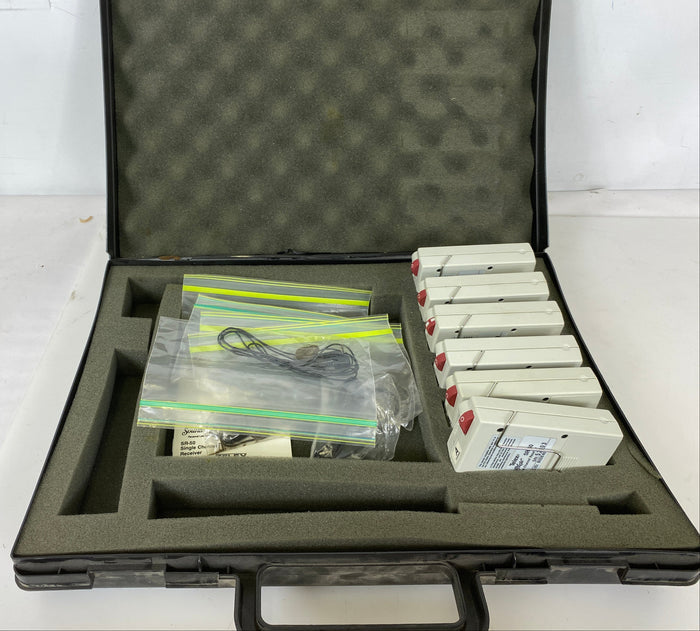

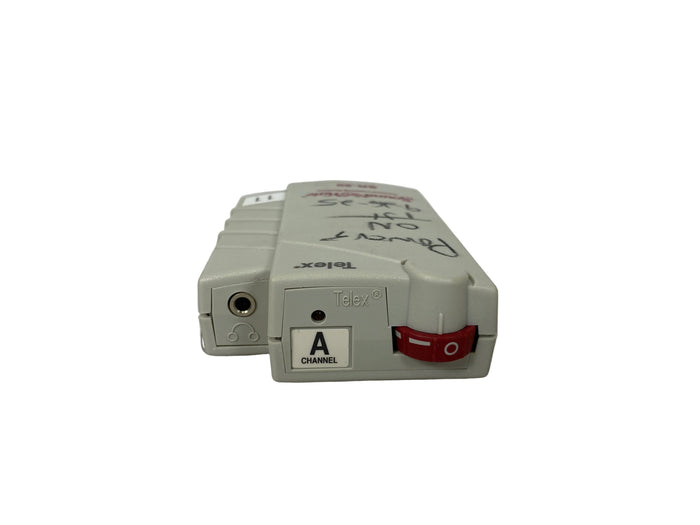

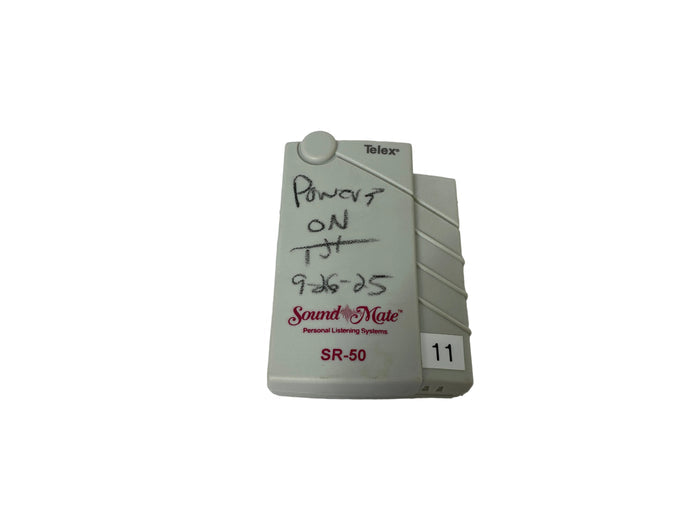

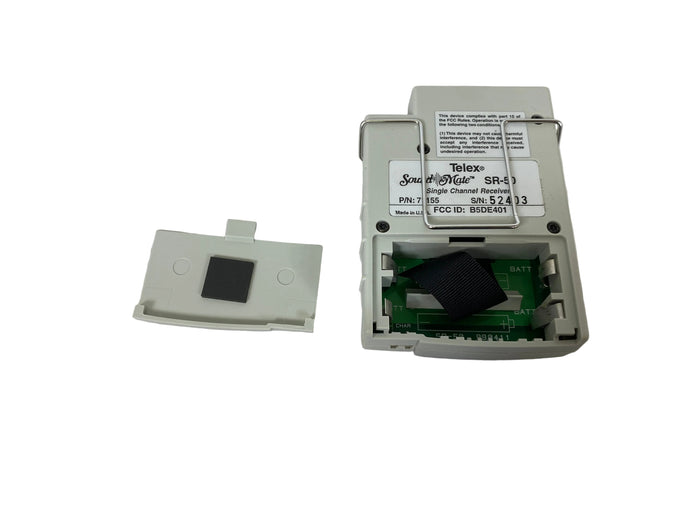

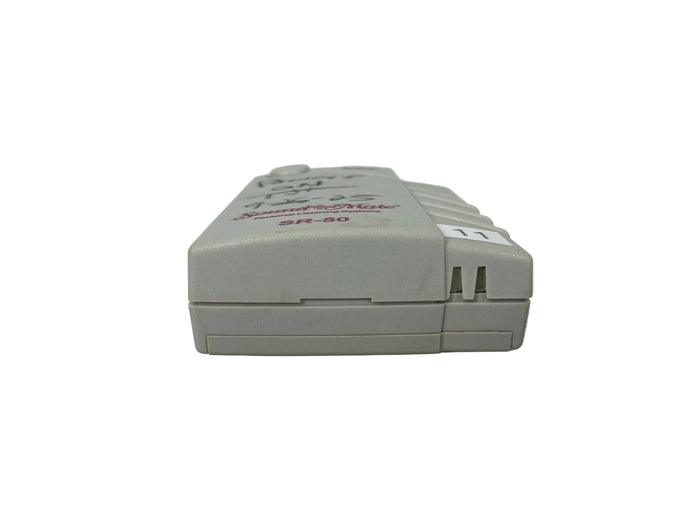

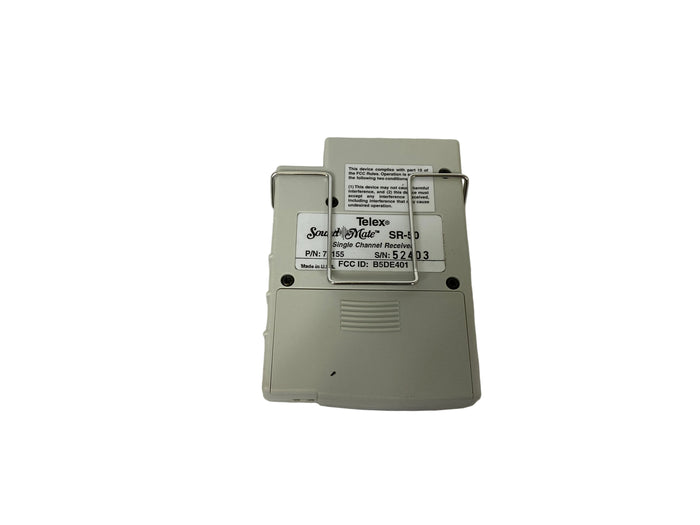

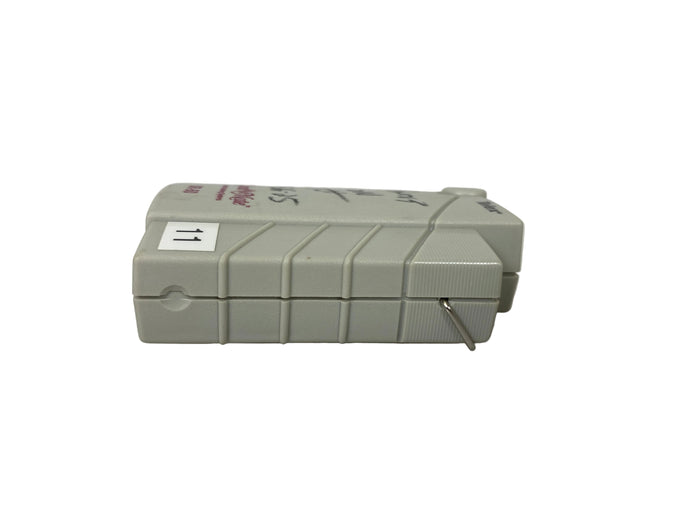

SoundMate SR-50 Single Channel Receiver kit *Untested*

Item Details:

• Brand: SoundMate
• Model: SR-50
• Type: Single Channel Receiver kit
• Specifications
  • RF Frequency Response Range: 72.1 - 75.9 MHz
  • Audio Response: 100 - 10,000 Hz +/- 3 dB
  • Modulation: FM, +/- 25 KHz deviation
  • Harmonic & Spurious Emissions: Meets FCC part 15
  • Sensitivity: 0.5 µv typical, 1.0 µv maximum, 12 dB SINAD @ 25 KHz deviation
  • Image Rejection: >65 dB
  • Signal-to-Noise Ratio: > 65 dB
  • Distortion: <2% T.H.D.
  • Audio Output: @10% distortion ----- Into 8 Ohms -- 48 mW into 32 Ohms--30mW
  • Antenna Type:  1/4 wave omni-directional, in earphone cord
  • Batteries: 2 AA-Size required (not included)
  • Audio Controls: Volume, On/Off
  • Earphone Connector Type: 3.5 mm mini stereo or mono
• Features
  • Provides clear reception and simplicity of a fixed channel
  • This economical receiver operates on one of 17 fixed narrow-band frequencies in the 72-76 MHz Band
  • Ergonomic raised volume control knob make level adjustments easily accessible by feel

  • Designed to operate with the Telex TW-6, AAT-2, PST-16, and ST-200 Transmitters

Item Condition:

• Item may have minor scratching and scuffing
• Item powers on but has not been tested further due to a lack of equipment
• Item is used and in good condition
