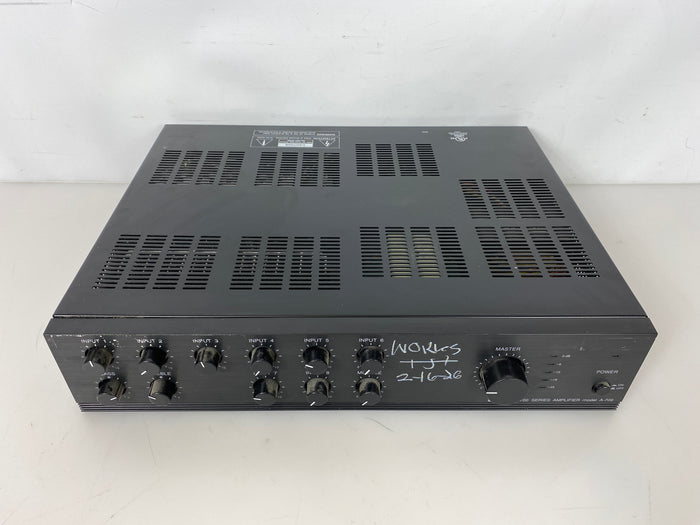

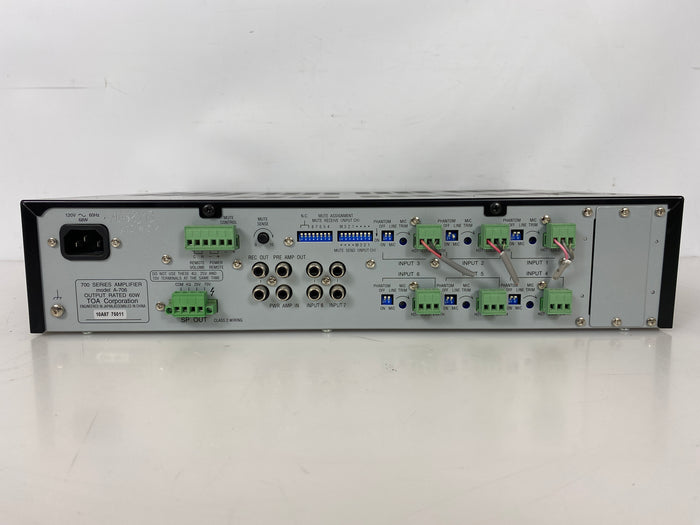

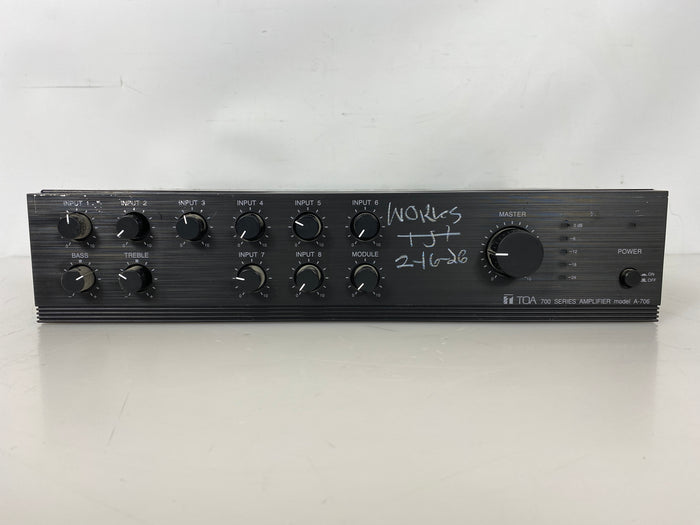

TOA 700 Series 9-Channel Mixer Power Amplifier A-706

Item Details:

• Brand: TOA
• Model: A-706
• Power Requirements: AC mains, 120 V, 60 Hz
• Output Power: 60 W
• Frequency Response: 50 - 20,000 Hz (±3 dB)
• Inputs:
  • INPUT 1 - 6: -70 to -50 dB*, 600 Ω (MIC)/ -10 dB*, 600 Ω (LINE)
  • INPUT 1: Transformer-balanced, removable terminal block (3 pins)
  • INPUT 2 - 6: Electronically-balanced, removable terminal block (3 pins)
  • NOTE: Each of INPUT 2 and 3 can be converted into transformer-balanced type by using an optional transformer IT-455.
  • INPUT 7 - 8 (LINE): -20 dB*, 10 kΩ, unbalanced, RCA jack
  • MODULE: -20 dB*, 10 kΩ
  • PWR AMP IN: 0 dB*, 10 kΩ, unbalanced, RCA jack
    (An equalizer or other signal processor connectable between PRE AMP OUT
    and PWR AMP IN terminals)
• Outputs:
  • REC OUT: 0 dB*, 600 Ω, unbalanced, RCA jack
  • PRE AMP OUT: 0 dB*, 600 Ω, unbalanced, RCA jack
  • SPEAKER OUT: 70 V line (83 Ω), 25 V line (10 Ω), and 4 - 16 Ω,
  • removable terminal block (4 pins)

Dimensions:

• 17" Width
• 13" Depth
• 3.5" Height

Condition:

• Item is used and in good condition

• Item has been tested and functions properly

• Item may contain minor scratching and scuffing from normal use
